Supreme 3.6m External Sliding Patio Doors

  • 15 Year Guarantee
  • Effortless Operation Lift and Slide Hardware
  • Secure Multi Point Locking System
  • Energy efficient
  • Super Low Weather Rated Threshold
  • Unique Drainage System

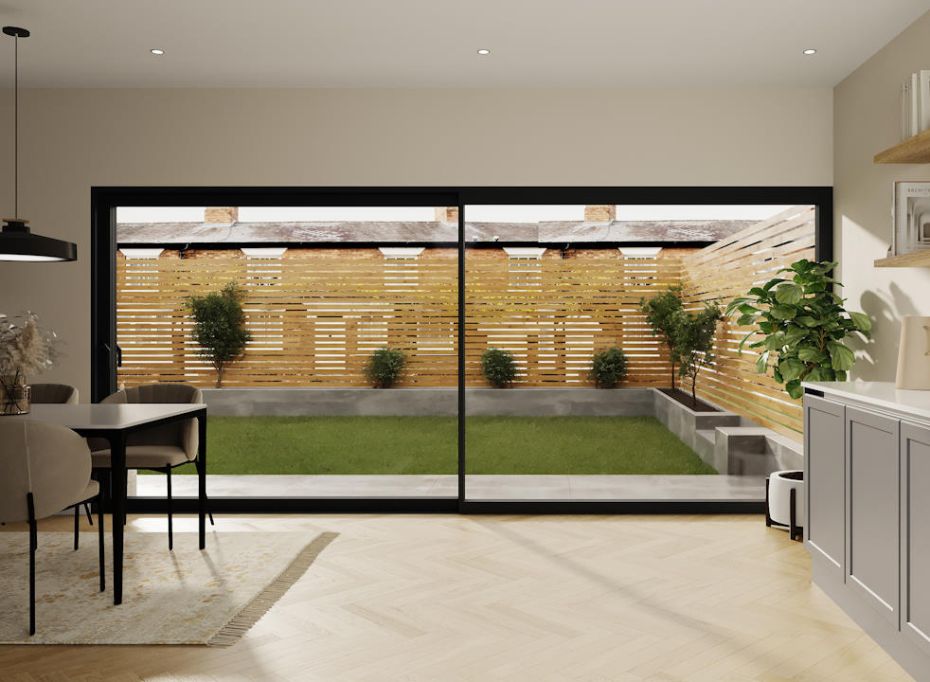

Supreme sliding door in grey - inside

The Supreme 3.6m ‘Lift and Slide’ sliding patio door is designed to easily cope with large door leaf sizes to maximise the glass area for the widest views. The ‘Lift and Slide’ action means with the doors in the closed position, they drop down onto the track which enhances the thermal and weather performance compared to non-lift and slide systems.

Strong aluminium sections and excellent thermal performance of 1.6 Wm2K, plus high quality running gear will provide you with years of effortless opening and closing and minimal maintenance.

Supreme ‘Lift and Slide’ doors are manufactured in the UK and have been designed to comply with current and future Building Regulations.

The Supreme 3.6m sliding door is available with several options
• Colours (anthracite grey, white, black or dual grey/white)
• Opening options
• Handles
• With or without a nose cill

Easy to follow yet comprehensive installation instructions are included.

Please Note: Any order placed for bespoke / customizable items or product(s), which includes Supreme sliders cannot be amended or cancelled.

Technical Specs
  • Dimensions and Measurements

    Frame Depth (mm) 164 (264mm with cill)
    Door Thickness (mm) 70
    Overall Weight (kg) 283
    Outer Frame Height (mm) 2090
    Outer Frame Width (mm) 3590
    Brick Opening Height (mm) 2100
    Brick Opening Width (mm) 3600
    Individual Door Width (mm) 1510
    Glass Width (mm) 1325
    Opening Options Left, right or double (both left and right)
  • Construction

    Cill External
    Cill Spec Optional cill nosing and nosing cover strip fits to the bottom cill to provide a wider, ‘overhang brickwork’ Cill option
    Doors 2
    Finish Powder coated aluminium
    Construction Powder coated aluminium sections
    Hardware Brushed silver
    Pre-Finish Details Powder coated aluminium in Anthractite Grey (RAL 7016), Hippca White (RAL 9910), Jet Black (RAL 9005) or dual colour grey/white
    Security Tested to PAS 24-2012 Enhanced Security
    Handles Choice of free black or white handles or upgrade to satin finish handles
    Number Of Handles 1
  • Glazing

    Double Glazed Yes
    Triple Glazed No
    Glazing Spec 28mm thickness double glazed units
    Safety Glass Compliance European standards BSEN12150/BSEN12600 and BS 1279 parts 1, 2 and 3
  • Performance

    Guarantee Aluminium finish: 15 Years if installed a minimum of 800 metres from the sea. 15 Year product Guarantee.
    Part L Compliant No
    FSC® Certified No
    U Value 1.6m2K
    Weather Tested Yes
    Weather Testing Weather tested to BS 6375-1, 2 and 3:2009
    Air permeability 600 Pa
    Watertightness 600 Pa
    Wind Resistance 1200 Pa
    CE Certificate View
    Document Q available upon request? Yes
    Document Q Yes
