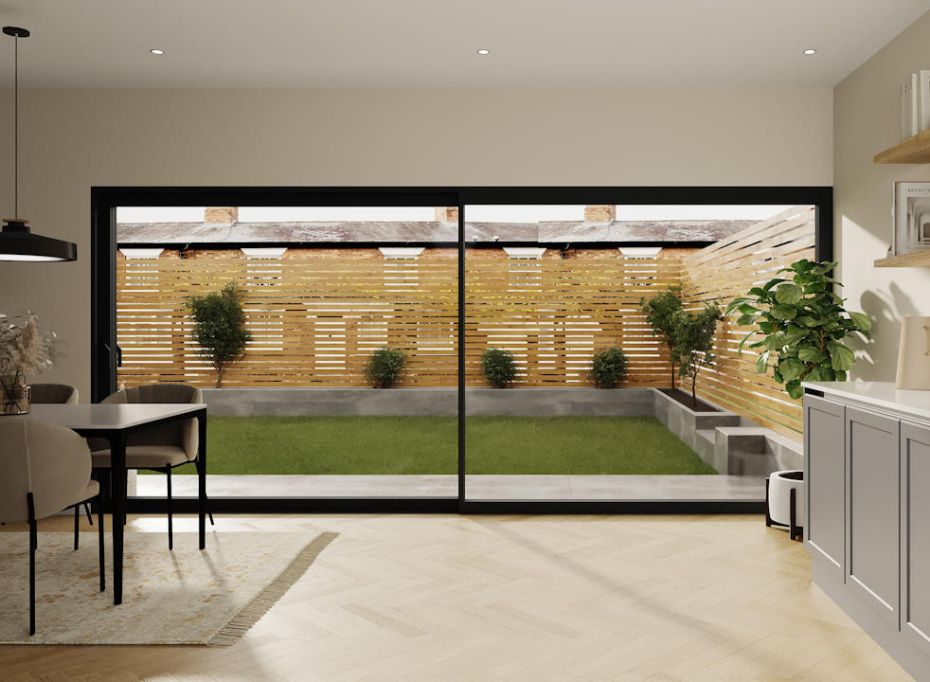

Supreme 5.0mExternal Sliding Patio Doors
Premium Lift and Slide hardware for effortless operation
Slim-line 50mm sightline for greater views
Low 50mm threshold for seamless transition between inside and out
The Supreme 5.0m ‘Lift and Slide’ sliding patio door is designed to easily cope with large door leaf sizes to maximise the glass area for the widest views. The ‘Lift and Slide’ action means with the doors in the closed position, they drop down onto the track which enhances the thermal and weather performance compared to non-lift and slide systems.
Strong aluminium sections and excellent thermal performance of 1.4 W/m2K, plus high quality running gear will provide you with years of effortless opening and closing and minimal maintenance.
Supreme ‘Lift and Slide’ doors are manufactured in the UK and have been designed to comply with current and future Building Regulations.
The Supreme 5.0m sliding door is available with several options
• Colours (anthracite grey, white, black or dual grey/white)
• Opening options
• With or without a nose cill
Easy to follow yet comprehensive installation instructions are included.
Please Note: Any order placed for made to measure items or product(s), which includes Supreme Sliding doors cannot be cancelled.
Measurements & Dimensions
|Brick Opening Width (mm)||5000|
|Brick Opening Height (mm)||2100|
|Outer Frame Width (mm)||4990|
|Outer Frame Height (mm)||2090|
|Frame Depth (mm)||164 (264mm with cill)|
|Overall Weight (kg)||381|
|Door Thickness (mm)||70|
|Opening Options||Left, right or double (both left and right)|
Materials & Certifications
|Pre-Finish Details||Powder coated aluminium in Anthractite Grey (RAL 7016), Hippca White (RAL 9910), Jet Black (RAL 9005) or dual colour grey/white|
|Security||Tested to PAS 24-2012 Enhanced Security|
|Construction||Powder coated aluminium sections|
|Glazing Spec||28mm thickness double glazed units|
|Safety Glass Compliance||European standards BSEN12150/BSEN12600 and BS 1279 parts 1, 2 and 3|
|U Value||1.4 W/m2K|
|Part L Compliant||Yes|
Downloads & Manuals
Delivery & Guarantee
We operate a professional 2-man home delivery service with delivery to most mainland UK postcodes within 5 - 6 weeks from the order being accepted.
More information on deliveries
Vufold's aluminium sliding patio doors are guaranteed for fifteen years against manufacturing faults.
Guarantee details can be found here
Returns and cancellations
As a consumer, you have the right to cancel your order and contract with Vufold ltd, under The Consumer Contracts (Information, Cancellation and Additional Charges) Regulations 2013, within 14 days without giving a reason.
Full returns and cancellation policy
The Difference is in the detail
Our aim has always been to create fantastic products we’d want in our own homes, we then add great customer service to look after you before, during and after your purchase.
I can honestly say I'm extremely impressed with everything from customer service and the fast delivery time to the quality of the doors and the instructions. I would highly recommend the company and the product.
Excellent quality product and great service from ordering through to delivery and after.
Delivered within a few days of order, on time and as agreed, contains all fixings, fixing tips, masonry and timber drill bits. Instructions really well written and easy to fix. Couldn’t have had a better experience..
How long will it take to receive my Supreme Sliding doors?
Our delivery times vary depending on time of year and demand each product listing will tell you the current lead time for your order. Once we despatch your order we'll send you an email to let you know. Most of our customers will receive the delivery within 3 working days, if you are in an outlying area it will be 5 working days, our two man delivery service will contact you direct usually by text with a delivery slot to let you know when the doors will arrive.
What is the sightline?
Supreme sliders glass to glass sightline is only 50mm.

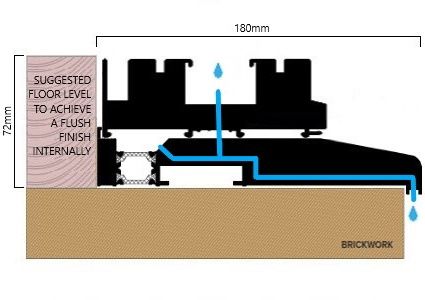

Do you do a level threshold?
The supreme threshold can be sunk into your floor to make a flush threshold from inside to outside.
Do Vufold do installation?
Vufold do not offer an installation service all our sets are designed to be easily installed by a local tradesperson.
What is the guarantee?
Supreme doors come with a 15 year guarantee.
Do you offer triple glazing?
We do not offer triple glazing on supreme sliders.
Can you get blinds?
We do not offer blinds on supreme sliders
Can I have solar reflective glass?
We can supply solar reflective glass upon request. Standard glass does feature a low-emission coating.
