Supreme 5.0mExternal Bifold Doors
Multi point locking system for security and peace of mind.
Specially designed, self-cleaning bottom rolling system with built-in track covers, gives you years of efforts opening and closing.
Sleek colour coded twin point locking handle with stainless steel door pull.

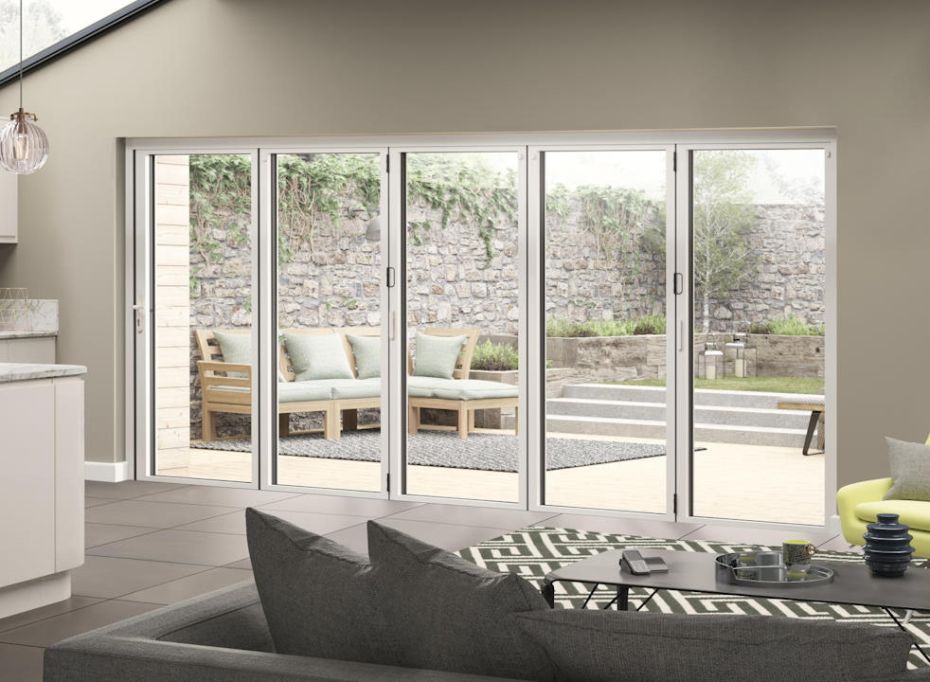

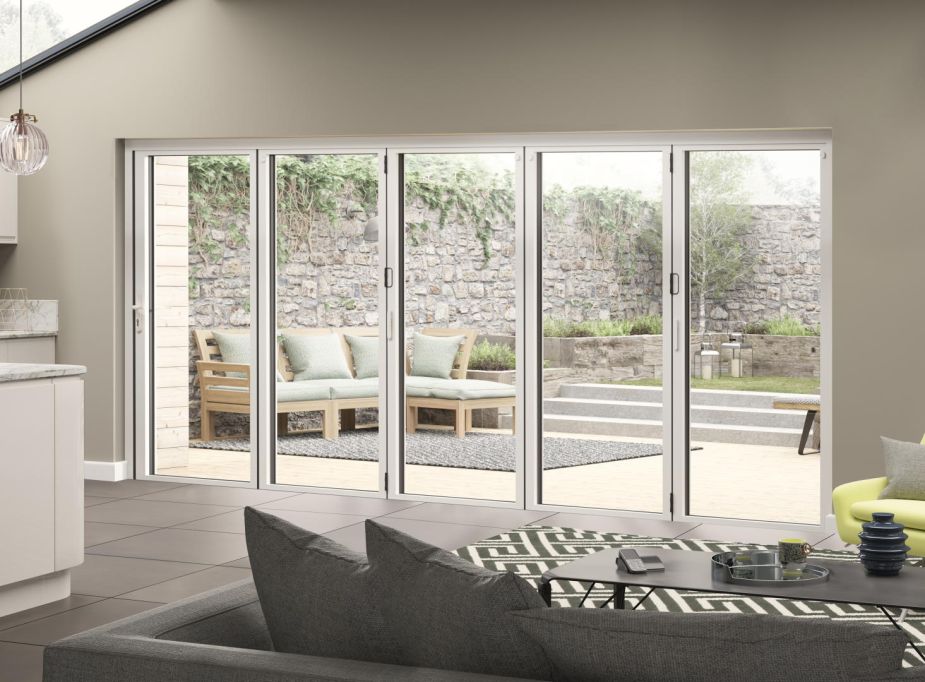

The Supreme White 5m, 5 door, full aluminium bi-fold doors are designed right here in the UK and manufactured in our purpose built production facility to the same high quality as all Vufold doors.
This sleek, premium aluminium bi-fold door set has all doors and frames thermally broken for improved insulation and is ideal for those wanting something totally stylish yet resilient. The doors of the 5m Supreme White interlock and are 70mm thick with high spec double or triple glazed units making this door set both thermally efficient and environmentally friendly.
For maximum security they have a multi-point locking system which includes twin deadbolts in the upper and lower positions on the main access door that passes the rigours of PAS 24 and the forthcoming EN14351-1 2006 security standard. Also they have extra twin point security bolts which are operated by a handle on the inside.
Document Q compliant - Do I need Document Q?
Specially designed, self- cleaning bottom rolling system with built-in track covers, gives you years of effortless opening and closing without the bottom rollers becoming jammed or clogged.
Supreme bi-fold doors incorporate unique Vufold manufacturing techniques to allow the glazed units to be factory installed including the 'toe and heel' balancing. This enables really fast and easy installation by any competent DIYer or builder in four easy steps.
• Assemble the frame (12 screws)
• Fix the frame into the brickwork opening, square up and level
• Fix the hardware to the doors and the doors to each other
• Finally adjust height and width if needs
And that's it! No specialist aluminium door fitter is required.
Each 5m Supreme door set includes everything you need - doors, frames, hardware, handle, tracks, fixings, magnetic catches, door stop and easy to follow assembly instructions plus the usual easy Vufold adjustability up to 8mm in height and 10mm in width.
Stunning casement windows are also available to perfectly match the bifold doors and complete the look on any extension, renovation or new build home.
Please Note: Any order placed for bespoke/customizable items or product(s), which includes Supreme bifolds cannot be cancelled.
Measurements & Dimensions
|Brick Opening Width (mm)||5000|
|Brick Opening Height (mm)||2100|
|Outer Frame Width (mm)||4990|
|Outer Frame Height (mm)||2090|
|Frame Depth (mm)||85|
|Overall Weight (kg)||208 (double) / 289 (triple)|
|Door Thickness (mm)||70|
|Opening Options||Left or right with daily access door|
Materials & Certifications
|Pre-Finish Details||White RAL 9910|
|Security||Multi point locking system including twin deadbolts in upper and lower positions on main access door that passes the rigours of PAS 24 and the forthcoming EN14351-1 2006 security standard. Extra twin point security bolts, handle operated from the inside.|
|Construction||Thermally broken aluminium|
|Hardware||Heavy duty stainless steel structure with aluminium hinge flaps. Floor rolling. Choice of white or satin metal finish.|
|Glazing Spec||2 or 3 panes. 28mm (double) or 48mm (triple) thick. Low E. Argon filled, double or triple glazed unit using toughened tempered safety glass.|
|Safety Glass Compliance||European standards BSEN12150 and BSEN12600|
|U Value||1.7 W/m2K (double glazed)
1.5 W/m2K (triple glazed)
|Part L Compliant||Yes|
Downloads & Manuals
Delivery & Guarantee
Vufold's external aluminium supreme bifold doors are guaranteed for fifteen years against manufacturing faults.
Guarantee details can be found here
Returns and cancellations
As a consumer, you have the right to cancel your order and contract with Vufold ltd, under The Consumer Contracts (Information, Cancellation and Additional Charges) Regulations 2013, within 14 days without giving a reason.
Full returns and cancellation policy
The Difference is in the detail
Our aim has always been to create fantastic products we’d want in our own homes, we then add great customer service to look after you before, during and after your purchase.
I can honestly say I'm extremely impressed with everything from customer service and the fast delivery time to the quality of the doors and the instructions. I would highly recommend the company and the product.
Excellent quality product and great service from ordering through to delivery and after.
Delivered within a few days of order, on time and as agreed, contains all fixings, fixing tips, masonry and timber drill bits. Instructions really well written and easy to fix. Couldn’t have had a better experience..
How long will it take to receive my Vufold Supreme Bifold door?
The Supreme range of bifold doors are currently unavailable, Please contact us for more information.
What is the guarantee?
Supreme doors come with a 15 year guarantee.
How high is the threshold?
The threshold is 55mm high. Detailed frame drawings with dimensions can be found in the 'Downloads And Manuals' tab of the product info.
Do Vufold do installation?
Vufold do not offer an installation service all our sets are designed to be easily installed by a local tradesperson or competent DIYer.
What is the sightline?
Supreme bifolds glass to glass sightline is only 141mm.
Do you do custom sizes?
What security do Vufold doors have?
All Vufold external doors have high levels of security. They will surpass the requirements of building regulations and insurance companies.
What is the u-value?
Double glazed 1.7w2k and 1.5w2k triple glazed.
