Urban Status 4.2m CRITTALL STYLE EXTERNAL BIFOLD DOOR
- 15 Year Guarantee
- Slim Sightlines, More Light Better View
- Secure Multi Point Locking System
- Energy Efficient
- Super Low Weatherproof Threshold
- Matching Window Suite
The Vufold Urban Status range of aluminium bi-fold doors are high performing yet affordable with no compromise on quality or efficiency. Boasting some of the narrowest sightlines on the market (123mm), its Crittall style four lite design gives it that hugely popular industrial look.

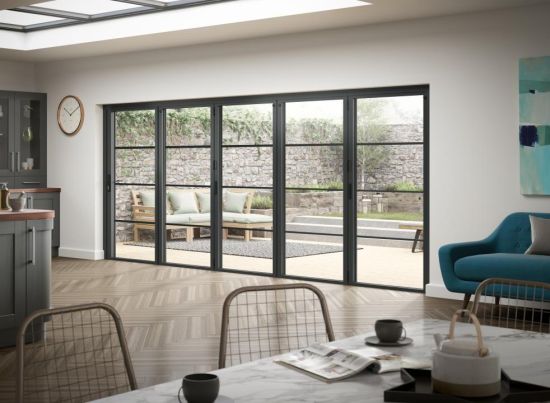

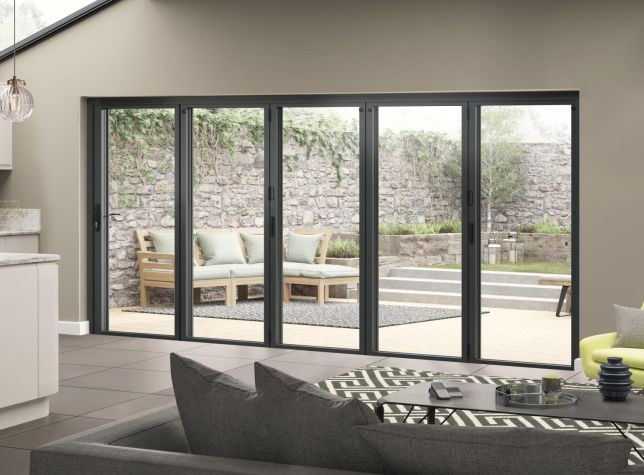

This grey, Double glazed 4.2m, 5 door aluminium bi-fold door set is sleek and contemporary in looks.
The Urban Status range has a polyamide thermal break between the aluminium sections to give an impressive thermal efficiency of 1.7 W/m2K. The remarkable high-tech roller design ensures years of effortless opening and closing, keeping your home secure and weatherproof throughout the year. The Status is independently weather tested to the highest UK standard to make sure the cold stays out and the heat stays in.
For Maximum security the Urban grey aluminium 4.2m bifold door has a twin point security bolt locking system operated by an internal handle.
Vufold’s unique manufacturing techniques allow the glazed units to be installed during factory production, we also include everything you need to fit the doors making this a ready-to-assemble door set.Find out why you need a
ready-to-assemble door set
Each 4.2m grey aluminium bi-folding door set includes:
• Door frames
• Hardware and handles(s)
• Fixings, catches and door stops
With easy to follow instructions, installation couldn’t be simpler.
Additional options and extras:
• Satin nickel hardware and handle
• Bottom track with cill
Please Note: Any order placed for bespoke / customizable items or product(s), which includes Urban Status bifolds cannot be amended or cancelled.
- Technical Specs
Dimensions and Measurements

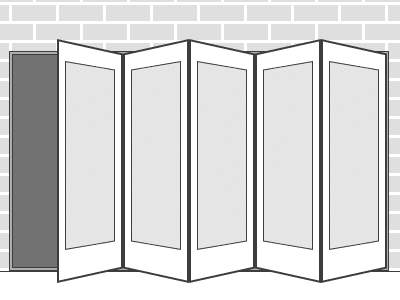

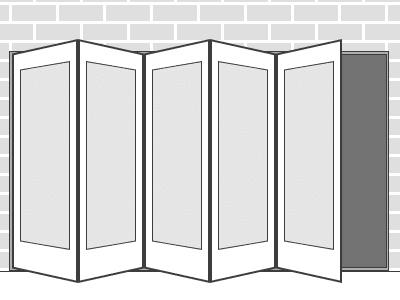

Frame Depth (mm) 85 Door Thickness (mm) 75 Glazing Bar Thickness (mm) 25 Overall Weight (kg) 67 Outer Frame Height (mm) 2090 Outer Frame Width (mm) 4190 Brick Opening Height (mm) 2100 Brick Opening Width (mm) 4200 Individual Door Width (mm) N/A Glass Width (mm) N/A Opening Options Left or Right
Cill Spec Thermally broken aluminium cill, powder coated grey. Doors 5 Finish 7016 Construction Thermally broken aluminium Hardware Black as standard or upgrade to satin nickel Pre-Finish Details Grey RAL 7016 Security Twin point security lockable central locks. Handles Black as standard Number Of Handles N/A
Double Glazed Yes Triple Glazed No Glazing Spec Low E Argon filled 28mm thickness, Double glazed unit using toughened tempered safety glass Safety Glass Compliance BSEN12150 & BSEN 12600
Guarantee Aluminium finish: 15 Years if installed a minimum of 800 metres from the sea. 10 Year product Guarantee. Part L Compliant Yes FSC® Certified No U Value 1.7 W/m2K Weather Tested No CE Certificate View Document Q available upon request? Yes Document Q What is Document Q?
